Kinesis

Kinesis Data Stream

• Real-time Data Stream
• Retention between 1 day to 365 days
• Ability to reprocess (replay) data
• Once data is inserted in Kinesis, it can’t be deleted (immutability)
• Data that share the same partition goes to the same shard (ordering)
• Producers: AWS SDK, Kinesis Producer Library (KPL), Kinesis Agent
• Consumers
  • Write your own: Kinesis Client Library (KCL), AWS SDK
  • Managed: AWS Lambda, Kinesis Data Firehose, Kinesis Data Analytics

Capacity Modes

Provisioned mode

• You choose the number of shards provisioned, scale manually or use API
• Each shard gets 1 MB/s in (or 1000 records per second)
• Each shard gets 2 MB/s out (classic or enhanced fan-out consumer)
• You pay per shard provisioned per hour

On-demand mode

• No need to provision or manage the capacity
• Default capacity provisioned (4 MB/s in or 4000 records per second)
• Scales are automatically based on observed throughput peaks during the last 30 days
• Pay per stream per hour & data in/out per GB

Security

• Control access/authorization using IAM policies
• Encryption in flight using HTTPS endpoints
• Encryption at rest using KMS
• You can implement encryption/decryption of data on the client-side (harder)
• VPC Endpoints are available for Kinesis to access within VPC
• Monitor API calls using CloudTrail

Architecture

Producer

Producers send data into Kinesis Data Stream

Can be in many forms: Applications, multi-platform clients, AWS SDK, Kinesis Producer Library (KPL), Kinesis Agent, Apache Spark, Log4j Appenders, Flume, Kafka Connect, NiFi, and so on.

Record

Partition key: Define and help determine in which shard will the record go to

Data Blob: The value itself

Fan-out

1 MB/sec or 1000 msg/sec per shard. If you have 6 shards, you get 6 MB/sec or 6000 msg/sec

Kinesis Data Streams

Kinesis Data Stream is made of multiple shards

Shards

• Shards are numbered
• Define data stream capacity in terms of ingestion and consumption rates

Consumer

Many forms: Applications, SDK, Kinesis Client Libraries, Lambda, Kinesis Data Firehose, Kinesis Data Analysis

Record

Partition key: Define and help determine in which shard will the record go to

Sequence number: Represent where a record was in the shard

Data Blob: The value itself

Fan-out

1. 2 MB/sec (shared) per shard for all consumers
2. 2 MB/sec (enhanced) Per shard per consumer

Kinesis Producer SDK - PutRecord(s)

• APIs that are used PutRecord (one) and PutRecords (many records)
• PutRecords uses batching and increases throughput → less HTTP requests
• ProvisionedThroughputExceeded if we go over the limits
• • AWS Mobile SDK: Android, IOS, and etc
• Use case: low throughput, higher latency, simple API, AWS Lambda
• Managed AWS sources for Kinesis Data Streams:
  • CloudWatch Logs
  • AWS IoT
  • Kinesis Data Analytics

AWS Kinesis API - Exceptions

ProvisionedThroughputExceeded Exceptions

• Happens when sending more data (exceeding MB/s or TPS for any shard)
• Make sure you don’t have a hot shard (such as your partition key is bad and too many data goes to that partition)

Solution

• Retries with backoff
• Increase shards (scaling)
• Ensure your partition key is a good one

Kinesis Producer Library (KPL)

• Easy to use and highly configurable C++/Java library
• Used for building high-performance, long-running producers
• Automated and configurable retry mechanism
• Synchronous and Asynchronous API (better performance for async)
• Submits metrics to CloudWatch for monitoring
• Batching (both turned on by default) - increase throughput, decrease cost:
  • Collect: Records and Write to multiple shards in the same PutRecords API call
  • Aggregate: increased latency
    • Capability to store multiple records in one record (go over 1000 records per second limit)
    • Increase payload size and improve throughput (maximize 1 MB/s limit)
• Compression must be implemented by the user
• KPL Records must be de-coded with KCL or a special helper library

Batching

• A record is not going to be sent right away, but aggregate several records into one record
• Several aggregated records also are collected and sent by one PutRecords
• We can influence the batching efficiency by introducing some delay with RecordMaxBufferedTime (default 100ms)

When not to use

• The KPL can incur an additional processing delay of up to RecordMaxBufferedTime within the library (user-configurable)
• Larger values for RecordMaxBufferedTime results in higher packing efficiencies and better performance
• Applications that cannot tolerate this additional delay may need to use the AWS SDK directly

Kinesis Agent

• Monitor Log files and sends them to Kinesis Data Streams
• Java-based agent, built on top of KPL
• Install in Linux-based server environments

Features

• Write from multiple directories and write to multiple streams
• Routing feature based on directory / log file
• Pre-process data before sending to streams (single line, csv to json, log to json, and so on)
• The agent handles file rotation, checkpointing, retry upon failures
• Emits metrics to CloudWatch for monitoring

Kinesis Consumer SDK - GetRecords

• Classic Kinesis - Records are polled by consumers from a shard
• Each shard has 2 MB total aggregate throughput
• GetRecords returns up to 10 MB of data (then throttle for 5 seconds) or up to 10000 records
• Maximum of 5 GetRecords API calls per shard per second = 200 ms latency
• If 5 consumers application consume from the same shard, means every consumer can poll once a second and receive less than 400 KB/s

Kinesis Client Library (KCL)

• Java-first library but exists for other languages too (Golang, Python, Ruby, Node, .Net, and so on)
• Read records from Kinesis produced with the KPL (de-aggretation)
• Share multiple shards with multiple consumers in one group, shard discovery
• Checkpoint feature to resume progress
• Leverage DynamoDB for coordination and checkpointing (one row per shard)
  • Make sure you provision enough Write Capacity Unit(WCU) / Read Capacity Unit (RCU)
  • Or use On-Demand for DynamoDB
  • Otherwise DynamoDB may slow down KCL
• Record processors will process the data
• ExpiredIteratorException → increase WCU

Kinesis Connector Library

• Older Java library (2016(, leverage the KCL library
• Write data to:
  • S3
  • DynamoDB
  • Redshift
  • ElasticSearch
• Kinesis Firehose replaces the Connector Library for a few of these targets, Lambda for the others

Lambda sourcing from Kinesis

• Lambda can source records from Kinesis Data Streams
• Lambda consumer has a library to de-aggregate record from the KPL
• Lambda can be used to run lightweight ETL to:
  • S3
  • DynamoDB
  • Redshift
  • ElasticSearch
  • Anywhere you want
• Lambda can be used to trigger notifications / send emails in real time
• Lambda has a configurable batch size (more in Lambda section)

Kinesis Enhanced Fan Out

• New game-changing feature from August 2018
• Works with KCL 2.0 and AWS Lambda (Nov 2018)
• Each Consumer get 2 MB/s of provisioned throughput per shard
• That means 20 consumers will get 40 MB/s per shard aggregated
• No more 2 MB/s limit
• Enhanced Fan Out: Kinesis pushes data to consumers over HTTP
• Reduce latency (~70 ms)

Comparison Enhanced Fan-Out and Standard Consumers

Standard consumers

• Low number of consuming applications (1, 2, 3, …)
• Can tolerate ~200 ms latency
• Minimize cost

Enhanced Fan-Out Consumers

• Multiple Consumer applications for the same Stream
• Low Latency requirement ~ 70 ms
• Higher costs
• Default limit of 5 consumers using enhanced fan-out per data stream

Kinesis Scaling

Kinesis Operations - Adding Shards

• Also called “Shard Splitting”
• Can be used to increase the Stream capacity (1 MB/s data in per shard)
• Can be used to divide a “hot shard”
• The old shard is closed and will be deleted once the data is expired

Kinesis Operations - Merging Shards

• Decrease the Stream capacity and save costs
• Can be used to group two shards with low traffic
• Old shards are closed and deleted based on data expiration

Out-of-order records after resharding

• After a reshard, you can read from child shards
• However, data you haven’t read yet could still be in the parent
• If you start reading the child before completing reading the parent, you could read data for a particular hash key out of order
• After a reshard, read entirely from the parent until you don’t have new records
• Note: The Kinesis Client Library (KCL) has this logic already built-in, even after resharding operations

Kinesis Operations - Auto Scaling

• Auto Scaling is not a native feature of Kinesis
• The API call to change the number of shards is UpdateShardCount
• We can implement Auto Scaling with AWS Lambda
• https://aws.amazon.com/blogs/big-data/scaling-amazon-kinesis-data-streams-with-aws-application-auto-scaling/

Kinesis Scaling Limitations

• Resharding cannot be done in parrallel. Plan capacity in advance
• You can only perform one resharding operation at a time and it takes a few seconds
• For 1000 shards, it takes 30K seconds (8.3 hours) to double the shards to 2000

You can’t do the following:

• Scale more than 10x for each rolling 24-hour period for each stream
• Scale up to more than double your current shard count for a stream
• Scale down below half your current shard count for a stream
• Scale up to more than 500 shards in a stream
• Scale a stream with more than 500 shards down unless the result is fewer than 500 shards
• Scale up to more than the shard limit for your account

Handling Duplicates

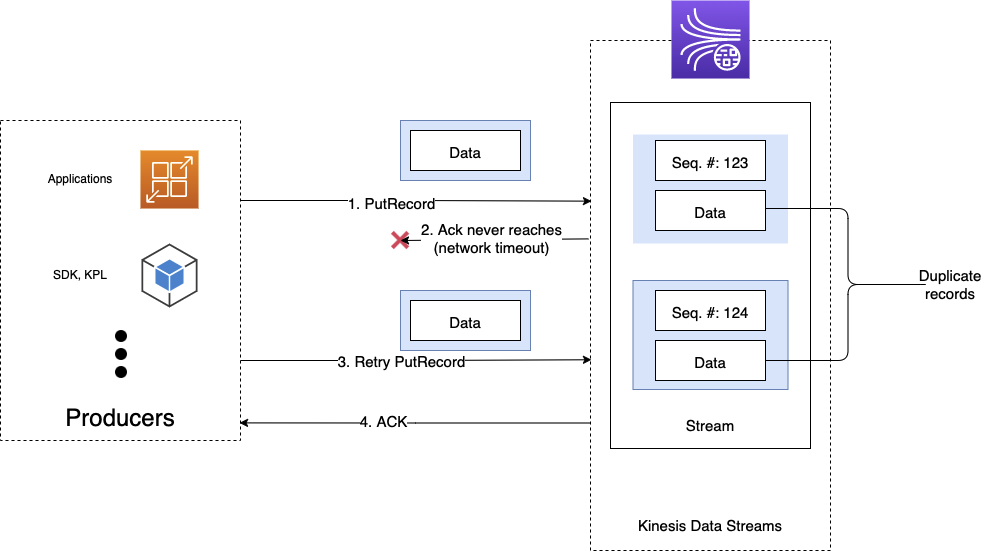

Producer-side

• Producer retries can create duplicates due to network timeouts
• Although the two records have identical data, they also have unique sequence numbers
• Fix: embed unique record ID in the data to de-duplicate on the consumer side

Consumer-side

• Consumer retries can make your application read the same data twice
• Consumer retries happen when record processors restart:
  • A worker terminates unexpectedly
  • Worker instances are added or removed
  • Shards are merged or split
  • The application is deployed
• Fixes:
  • Make your consumer application idempotent
  • If the final destination can handle duplicates, it’s recommended to do it there
  • https://docs.aws.amazon.com/streams/latest/dev/kinesis-record-processor-duplicates.html

Kinesis Security

• Control access / authorization using IAM policies
• Encryption in flight using HTTPS endpoints
• Encryption at rest using KMS
• Client side encryption must be manually implemented (harder)
• VPC Endpoints available for Kinesis to access with VPC

Kinesis Data Firehose

• Fully Managed Service, no administration
• Near Real Time (60 seconds latency minimum for non full batches)
• Load data into RedShift / S3 / ElasticSearch / Splunk
• Automatic scaling
• Supports many data formats
• Data Conversions from JSON to Parquet / ORC (only for S3)
• Data Transformation through AWS Lambda (ex: CSV → JSON)
• Supports compression when target is Amazon S3 (GZIP, ZIP, and SNAPPY)
• Only GZIP is the data is further loaded into Redshift
• Pay for the amount of data going through Firehose
• Spark / KCL do not read from KDF

Kinesis Data Firehose Delivery Diagram

• There’s a bunch of blueprints available for AWS Lambda to try to help you transform the data in Firehose in the format you want
• If Redshift is your destination, actually it goes through S3, and then there will be a COPY command issued to put that data into Redshift
• You don’t lose data with Kinesis Data Firehose
  • either it ends in your targets
  • you will have a recollection of all the transformation failure, the delivery failure, and even the source records if you want it to into another S3 bucket

Firehose Buffer Sizing

• Firehose accumulates records in a buffer
• The buffer is flushed based on time and size rules
• Buffer Size (ex:32 MB): if that buffer size is reached, it’s flushed
• Buffer Time (ex: 2 minutes): if that time is reached, it’s flushed
• Firehose can automatically increase the buffer size to increase throughput
• Hight throughput → Buffer Size will be hit
• Low throughput → Buffer Time will be hit

Kinesis Data Stream vs Firehose

Streams

• Going to write custom code (producer/consumer)
• Real time (~200 ms latency for classic, ~70 ms latency for enhanced fan-out)
• Must manage scaling (shard splitting/merging)
• Data Storage for 1 to 365 days, replay capability, multi consumers
• Use with Lambda to insert data in real-time to ElasticSearch (for example)

Firehose

• Fully managed, send to S3, Splunk, Redshift, ElasticSearch
• Serverless data transformations with Lambda
• Near real time (lowest buffer time is 1 minute)
• Automated Scaling
• No data Storage

CloudWatch Logs Subscriptions Filters

CloudWatch Logs Subscription Filter Patterns Near Real-Time into Amazon ES

CloudWatch Logs Subscription Filter Patterns Real Time Load into Amazon ES

CloudWatch Logs Subscription Filter Patterns Real Time Analytics into Amazon ES
