Categorizing Design Pattern

1. Overview

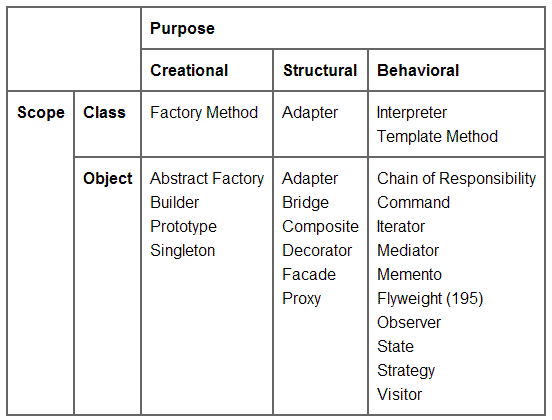

Design patterns are solutions to software design problems you find again and again in real-world application development. Patterns are about reusable designs and interactions of objects. The 23 Gang of Four (GoF) patterns are generally considered the foundation for all other patterns. They are categorized into three groups: Creational, Structural, and Behavioral

2. Description

2.1 Creational Pattern

These design patterns provide ways to create objects while hiding the creation logic, instead of instantiating objects directly using the new operator. This gives the program more flexibility in deciding which objects need to be created for a given use case.

name	Description
Abstract Factory	Creates an instance of several families of classes
Builder	Separates object construction from its representation
Factory method	Creates an instance of several derived classes
Prototype	A fully initialized instance to be copied or cloned
Singleton	A class of which only a single instance can exist

2.2 Structural Pattern

These design patterns deal with class and object composition. The concept of inheritance is used to compose interfaces and define ways to compose objects to obtain new functionality.

Name	Description
Adapter	Match interfaces of different classes
Bridge	Separate an object's interface from its implementation
Composite	A tree structure of simple and composite objects
Decorator	Add responsibilities to objects dynamically
Facade	A single class that represents an entire subsystem
Flyweight	A fine-grained instance used for efficient sharing
Proxy	An object representing another object

2.3 Behavioral Pattern

These design patterns are specifically concerned with communication between objects.

Name	Description
Chain of Resp.	A way of passing a request between a chain of objects
Command	Encapsulate a command request as an object
Interpreter	A way to include language elements in a program
Iterator	Sequentially access the elements of a collection
Mediator	Defines simplified communication between classes
Mememto	Capture an restore an object's internal state
Observer	A way of notifying a change to a number of classes
State	Alter an object's behavior when its state changes
Strategy	Encapsulates an algorithm to a subclass
Template Method	Defer the exact steps of an algorithm to a subclass
Visitor	Defines a new operation to a class without change
