Guideline for testing performance

1. Overview

Performance testing is a form of software testing that focuses on how a system running the system performs under a particular load. This is not about finding bugs or defects. Performance testing measures according to benchmarks and standards. Performance testing should give developers the diagnostic information they need to eliminate bottlenecks.



2. Description



• Types

Types	Description
Load testing	Measuring system performance as the workload increases. That workload could mean concurrent users or transactions. Measuring response time and system staying power as workload increases That workload falls within the parameters of normal working conditions
Stress testing(Fatigue testing)	Measuring system performance outside of the parameters of normal working conditions Given more users or transactions that can be handled The goal of stress testing is to measure the software stability At what point does software fail, and how does the software recover from failure
Spike testing	A type of stress testing that evaluate software performance when workloads are substantially increated quickly and repeatedly The workload is beyond normal expectations for short amounts of time
Endurance testing(Soak testing)	An evaluation of how the software performs with a normal workload over an extended amount of time The goal of endurance testing is to check for system problems such as memory leaks
Scalability testing	Determining if the software is effectively handling increasing workloads Gradually adding to the user load or data volume while monitoring system performance Also, The workload may stay at the same level while resources such as CPUs and memory are changed
Volume testing(Flood testing)	Determining how efficiently software performs with a large, projected amount of data



• Most common problems observed in performance testing

Problems	Description
Bottlenecking	Occurring When data flow is interrupted or halted because there is not enough capacity to handle the workload
Poor scalability	If software cannot handle the desired number of concurrent tasks, results could be delayed, errors could increase, or other unexpected behavior could happen that affects Disk Usage CPU Usage Memory leaks OS limitations Poor network configuration
Software configuration issues	Often setting are not set at a sufficient level to handle the workload
Insufficient hardware resources	Performance testing may reveal physical memory constraints or low-performing CPUs

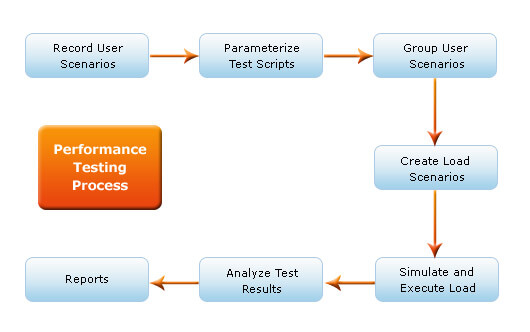

• Test Flow

1. Identify the testing environment	Identify the hardware, software, network configuration and tools available allows the testing team to design the test and identify performance testing challenges easily. Performance testing environment options include: A subset of production system with fewer servers of lower specification A subset of production system with fewer servers of the same specification Replica of a production system Actual production system
2. Identify performance metrics	Identifying metrics such as response time, throughput and constraints identifying what are the success criteria for performance testing
3. Plan and design performance tests	Identifying performance test scenarios that take into account user variability, test data, and target metrics Creating one or two models
4. Configure the test environment	Prepare the elements of the test environment and instruments needed to monitor resources
5. Implement test design	Develop the tests
6. Execute tests	Running, monitoring, and capturing the data generated
7. Analyze, report, and retest	Analyze the data and share the findings Run test performance tests again using the same parameters and different parameters



• Performance testing Metrics

 Metrics are needed to understand the quality and effectiveness of performance testing.

• Measurements: The data being collected such as the seconds it takes to respond to a request
• Metrics: A calculation that uses measurements to define the quality of results such as average response time(total response time/requests)

There are many ways to measure speed, scalability, and stability but each round of performance testing cannot be expected to use all of them



Metrics	Description
Response time	Total time to send a request and get a response
Wait time(Average latency)	How long it takes to receive the first byte after a request is sent
Average load time	The average amount of time it takes to deliver every request is a major indicator of quality from a user's perspective
Peak response time	Longest amount of time it takes to fulfill a request. significantly longer response time may indicate an anomaly that will create problems
Error rate	A percentage of requests resulting in errors compared to all requests. These errors usually occur when the load exceeds the capacity
Concurrent users(load size)	The most common measure of load. how many active users at any point
Requests per second	How many requests are handled
Transactions passed/failed	Total numbers of successful or unsuccessful requests.
Throughput	Measured by kilobytes per second, throughput shows the amount of bandwidth used during the test
CPU utilization	How much time the CPU needs to process requests
Memory utilization	How much memory is needed to process the request



• Performance Testing Best Practices

Test as early as possible in the development

Performance testing isn't just for completed project but also units or modules testing

Conduct multiple performance tests to ensure consistent findings and determine metrics average

Applications often involve multiple systems such as databases, servers, and services. Test the individual units separately as well as together

Involve developers, IT and tester in creating performance testing environments

Determine how the results will affect users not just test environment servers

Develop a model by planning a test environment that takes into account as much user activity as possible

Baseline measurements provide a starting point for determining the success or failure

Performance tests are best conducted in test environments that are close to the production systems as possible

Isolate the performance test environment from the environment used for quality assurance testing

No performance testing tool will do everything needed. Research performance testing tools for the right fit.

Keep the test environment as consistent as possible

Calculating averages will deliver actionable metrics. Extrem measurements could reveal possible failures

Including any system and software changes in reports.



• Five common performance testing mistakes

Not enough time for testing

Not involving developers

Not using QA system similar to the production system

Not sufficiently tuning software

Not having a troubleshooting plan



• Performance Testing Fallacies

Performance testing is the last step in development

More hardware can fix performance issues

The testing environment is close enough

What works now, works across the board

One performance testing scenario is enough

Testing each part equals testing the whole system

What works for them, works for us

Software developers are too experienced to need performance testing

A full load test tells everything

Test scripts are actual users
